PIR Motion Sensor Stair LED Strip Controller is designed for intelligent staircase lighting systems. It automatically controls LED strip lights step-by-step using motion detection, creating a smooth and modern lighting effect for residential and commercial spaces.

This controller supports up to 32 steps (channels) and works with DC12V–24V LED strips. With dual PIR sensors installed at the top and bottom of the stairs, the system activates lighting based on movement direction.

Key Features:

  • 32 channel output – supports 1 to 32 steps
  • Dual PIR motion sensors for automatic activation
  • DC12V / 24V compatible
  • Max power: 500W
  • Short circuit protection for safe operation
  • Sequential step lighting effect (walking light effect)
  • Adjustable speed, brightness, and delay time

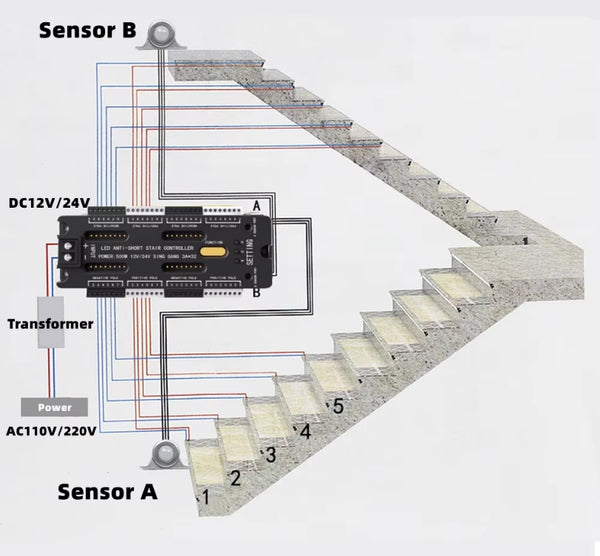

How It Works:

  • Install PIR sensors at both ends of the staircase
  • When motion is detected, lights turn on step-by-step
  • Lights automatically turn off after a delay

Applications:

  • Staircase lighting systems
  • Residential smart lighting
  • Commercial stair lighting
  • Pathway and step illumination

Specifications:

  • Input Voltage: DC12V / DC24V
  • Output Channels: 32
  • Max Power: 500W
  • Sensor Type: PIR Motion Sensor
  • Function: Step-by-step lighting control

Important Notes:

  • This is a low-voltage controller – requires LED driver
  • Do NOT connect directly to 120V AC
  • Not waterproof – indoor use only
