Votatec 0-10V LED Dimmer Switch – 3-Way, 120V, Neutral Required, White
Votatec 0-10V LED Dimmer Switch

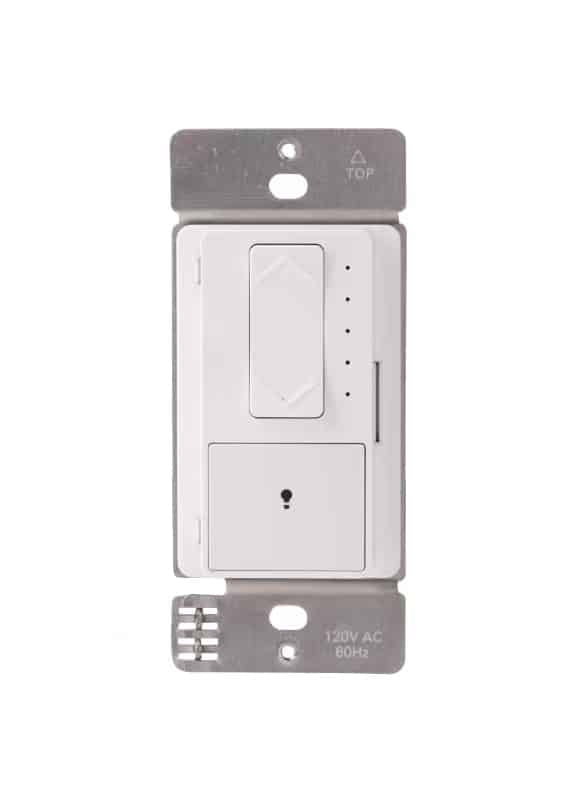

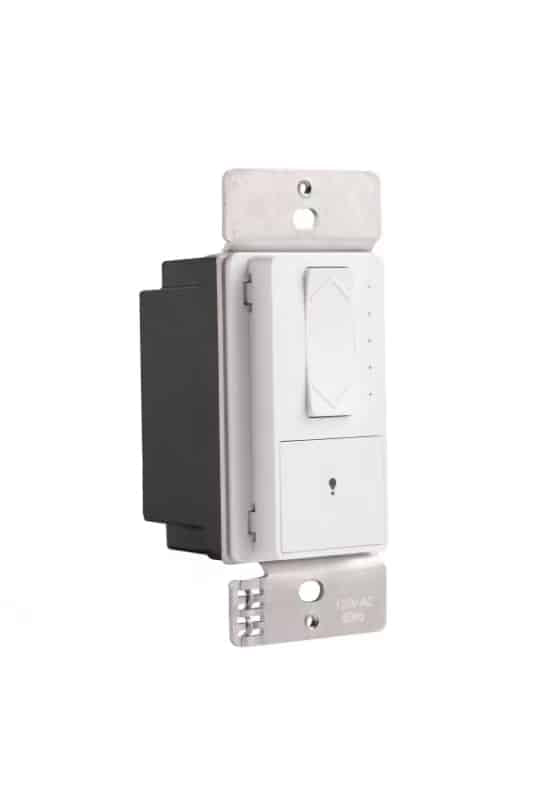

Get reliable, precise lighting control with the Votatec BAK-010A 0-10V LED Dimmer Switch. Designed for compatible 0-10V dimmable LED fixtures and drivers, this commercial-grade wall control is ideal for offices, retail stores, warehouses, workshops and residential lighting applications.
The dimmer provides a separate 0-10V control signal for smooth brightness adjustment. It supports both single-pole and 3-way installations and includes five LED indicators that make it easy to see the selected brightness level.
Important: This dimmer requires a neutral wire and must be connected to a fixture or driver specifically marked as 0-10V dimmable. It is not a replacement for a standard TRIAC or phase-cut LED dimmer.
Key Features
- 0-10V dimming control: Designed for compatible commercial LED fixtures and 0-10V dimmable drivers
- Single-pole or 3-way operation: May be used alone or with a compatible external 3-way switch
- Push-button ON/OFF: Separate power button provides convenient lighting control
- Adjustable brightness: Use the up and down buttons for stepped or continuous dimming
- Five LED indicators: Clearly display the approximate brightness setting
- Neutral required: Uses line, neutral and ground connections with separate DIM+ and DIM− control wires
- Standard wall-box fit: Designed for installation in a standard North American single-gang electrical box
- Indoor use: Suitable for dry indoor residential and commercial locations
Typical Applications
- Offices and conference rooms
- Retail stores and showrooms
- Warehouses and workshops
- Schools and institutional buildings
- Commercial LED panels and linear fixtures
- 0-10V high bays, wraparound lights and strip fixtures
- Compatible residential 0-10V lighting systems
Product Specifications
| Brand | Votatec |
| Model | BAK-010A |
| Control Type | 0-10V dimming |
| Nominal Input | 120V AC, 60Hz |
| Maximum Load | 500W incandescent/halogen or 150W LED/CFL |
| Installation | Single-pole or 3-way |
| Power Connection | Line and neutral wire required |
| Control Wires | DIM+ and DIM− |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 4.13 × 1.69 × 1.77 in. |
| Mechanical Life | More than 20,000 operations |
| Application | Indoor use only |
| Colour | White |
Before Ordering
- Confirm that the LED fixture or driver is labelled 0-10V dimmable.
- A neutral wire must be available inside the electrical box.
- The purple wire connects to DIM+ and the pink wire connects to DIM−.
- This product is not intended for ordinary two-wire TRIAC, ELV or phase-cut dimming systems.
- A wall plate is not included unless specifically shown or stated in the package contents.
Installation Notice
Turn off power at the circuit breaker before installation. Use copper conductors only and follow the supplied wiring instructions. Installation must comply with applicable electrical codes and should be completed by a qualified electrician.
Download Product Spec Sheet
