Votatec PIR Motion Sensor Dimmer Switch – 3-Way, 120V, 200W LED, Adjustable Timeout & Sensitivity, White

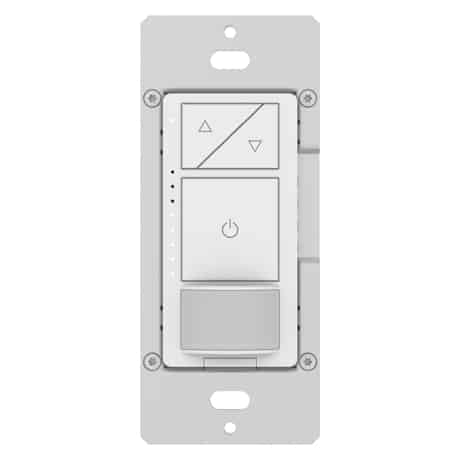

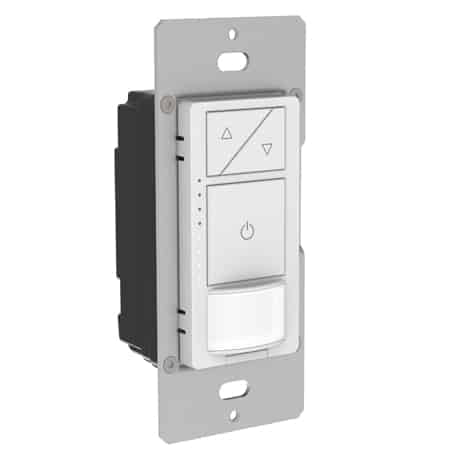

Votatec PIR Motion Sensor Dimmer Switch
Combine automatic lighting control and adjustable dimming in one convenient wall switch. The Votatec DNA042CPU1-600 uses passive infrared (PIR) technology to detect movement and automatically control compatible dimmable lighting.
It can operate in automatic PIR sensor mode or manual control mode. Adjustable motion sensitivity, ambient-light threshold and shut-off delay make it suitable for bathrooms, hallways, laundry rooms, garages, offices, storage rooms and other indoor spaces.
Key Features
- Motion sensor and dimmer in one: Automatically controls the light while allowing manual brightness adjustment
- Automatic or manual operation: Switch between PIR motion-detection mode and conventional manual control
- Adjustable brightness: Raise or lower the light level using the built-in dimming controls
- Adjustable shut-off delay: Select 1, 5 or 15 minutes after motion is no longer detected
- Three sensitivity levels: Choose low, medium or high PIR sensitivity to suit the room
- Ambient-light control: Adjustable lux settings help prevent unnecessary operation when sufficient natural light is available
- Single-pole or 3-way: Suitable for one-location control or compatible 3-way installations
- No neutral connection required: Designed for line, load and ground wiring in a compatible installation
- Adjustable minimum and maximum brightness: Helps improve compatibility and reduce flickering or start-up issues with dimmable LED bulbs
Typical Applications
- Bathrooms and powder rooms
- Hallways and stairways
- Laundry and utility rooms
- Garages and workshops
- Storage rooms and closets
- Offices and meeting rooms
- Residential and commercial indoor lighting
Product Specifications
| Brand | Votatec |
| Model | DNA042CPU1-600 |
| Sensor Technology | Passive infrared (PIR) |
| Voltage | 120V AC, 60Hz |
| LED/CFL Load | 3W–200W |
| Incandescent/Halogen Load | 15W–600W |
| Dimming Method | Phase-cut dimming |
| Circuit Type | Single-pole or 3-way |
| Detection Angle | Approximately 140° |
| Maximum Detection Range | Up to 8 m under suitable conditions |
| Timeout Settings | 1, 5 or 15 minutes |
| PIR Sensitivity | Low, medium or high |
| Ambient-Light Settings | Low, medium or high |
| Recommended Mounting Height | Approximately 3.94 ft. / 1.2 m |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 105 × 44 × 35 mm |
| Colour | White |
| Application | Indoor use only |
Lighting Control Options
Automatic PIR Mode: The light turns on when movement is detected and turns off after the selected delay when no further motion is detected.
Manual Mode: Use the switch as a conventional dimmer with manual ON/OFF and brightness control.
Light-Control Mode: The connected light responds to the selected ambient-light threshold, helping reduce unnecessary operation when the room is already bright.
Before Ordering
- Use only with compatible dimmable LED, CFL, incandescent or halogen lighting.
- Do not connect this dimmer to non-dimmable bulbs.
- Do not use it to control receptacles, motors or transformer-supplied appliances.
- When controlling multiple bulbs, use bulbs of the same type and preferably the same model.
- Actual motion-detection range may vary with installation height, room layout, temperature and obstructions.
- Wall plate availability should be confirmed from the selected package contents.
Installation Notice
Turn off power at the circuit breaker and verify that the circuit is de-energized before installation. Wiring must follow the supplied installation manual and applicable electrical codes. Installation by a qualified electrician is recommended.
