Votatec WiFi Smart Dimmer Switch – 3-Way, 150W LED, Smart Life App, Alexa & Google Assistant, White

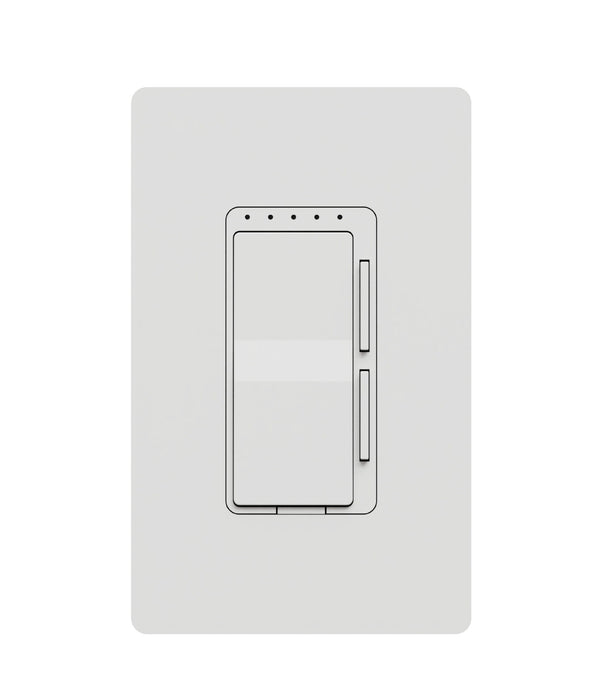

Votatec WiFi Smart Dimmer Switch
Upgrade compatible dimmable lighting with convenient control from the wall, your phone or your voice assistant. The Votatec VO-DMRW150-120-WIFI Smart Dimmer connects directly to a 2.4GHz home WiFi network, so no separate smart-home hub is required.
Use the Smart Life App to turn the lights on or off, adjust brightness, create schedules and control your lighting remotely. The switch is also compatible with Amazon Alexa and Google Assistant for hands-free voice control.
Important: This smart dimmer requires a neutral wire and a 2.4GHz WiFi network. It is designed for compatible dimmable LED, incandescent and halogen lighting only.
Key Features
- Smartphone control: Turn lights on or off and adjust brightness through the Smart Life App
- Voice control: Works with compatible Amazon Alexa and Google Assistant devices
- No hub required: Connects directly to a 2.4GHz WiFi network
- Remote access: Control connected lighting from your phone when an internet connection is available
- Lighting schedules: Program automatic ON/OFF times through the app
- 1%–100% brightness control: Create comfortable lighting for different activities and times of day
- Manual wall control: Built-in ON/OFF and brightness buttons allow normal operation without using the app
- Single-pole or 3-way: Suitable for compatible one-location and two-location lighting circuits
- LED brightness indicators: Five indicator lights display the approximate selected brightness level
- Adjustable minimum brightness: Helps reduce low-level flickering with compatible dimmable LED lighting
- Built-in protection: Designed with overload and over-temperature protection
- Decorative wall plate included: Provides a clean, finished appearance without exposed screws
Smart Control Options
Smart Life App: Use a compatible iOS or Android device to switch the light on or off, change brightness and configure lighting schedules.
Amazon Alexa: Link the Smart Life account with a compatible Alexa device to control the connected lighting using voice commands.
Google Assistant: Connect the Smart Life account with a compatible Google Assistant device for hands-free lighting control.
Manual Control: The dimmer continues to provide ON/OFF and brightness control directly from its wall-mounted buttons.
Typical Applications
- Living rooms and family rooms
- Bedrooms
- Kitchens and dining rooms
- Home offices
- Hallways and stairways
- Residential recessed lighting
- Compatible dimmable LED ceiling fixtures
Product Specifications
| Brand | Votatec |
| Model | VO-DMRW150-120-WIFI |
| Product Type | WiFi Smart Dimmer Switch |
| Rated Voltage | 120V AC, 60Hz |
| Dimmable LED Load | 150W maximum |
| Incandescent/Halogen Load | 500W maximum |
| Brightness Range | 1%–100% with compatible lighting |
| Circuit Type | Single-pole or compatible 3-way |
| WiFi Requirement | 2.4GHz WiFi network |
| App | Smart Life |
| Voice Compatibility | Amazon Alexa and Google Assistant |
| Hub Required | No |
| Power Supply | Line and neutral wire required |
| Operating Temperature | 0°C to 40°C |
| Mechanical Life | More than 40,000 operations |
| Dimensions | 4.53 × 2.76 × 1.75 in. |
| Material | Plastic and aluminum |
| Colour | White |
| Application | Indoor use |
3-Way Installation
For a compatible 3-way circuit, the smart dimmer must be installed in the electrical box connected to the lighting load, while a compatible conventional 3-way switch is installed at the incoming line location. Follow the supplied wiring diagram carefully.
Before Ordering
- Confirm that a neutral wire is available inside the intended electrical box.
- Confirm that the light bulbs or fixtures are marked dimmable.
- This switch connects only to a 2.4GHz WiFi network; it does not connect directly to a 5GHz-only network.
- The connected lighting load must not exceed 150W for dimmable LED or 500W for incandescent/halogen lighting.
- Do not use this dimmer to control non-dimmable lights, receptacles, fans, motors or appliances.
- Smart features require a compatible mobile device, Smart Life account, WiFi connection and internet access.
- Voice control requires a separately purchased compatible Amazon Alexa or Google Assistant device.
Installation Notice
Turn off power at the circuit breaker and verify that the circuit is de-energized before installation. The wiring configuration must match the supplied installation manual. Installation must comply with applicable electrical codes and should be completed by a qualified electrician.
